Equal curtain walls

Icon

Related news and articles

• New Revit plugin. Equal curtain walls

Usage

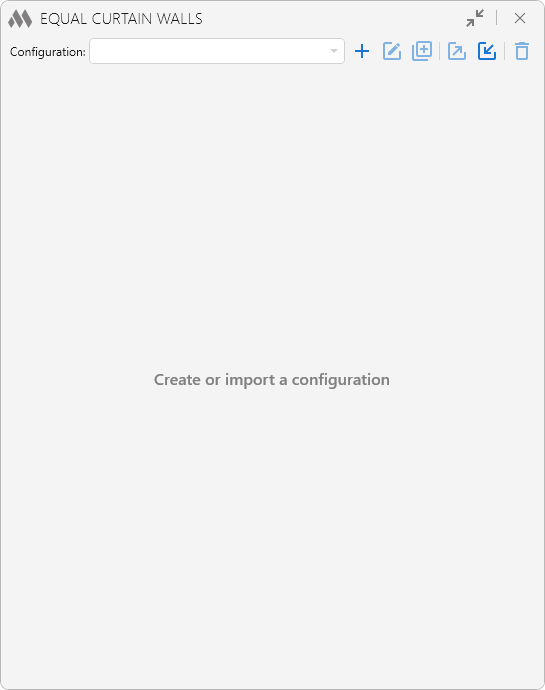

To start working with the plugin, you need to create a configuration by clicking . Created configurations can be duplicated , renamed , exported , imported , and deleted using the corresponding buttons.

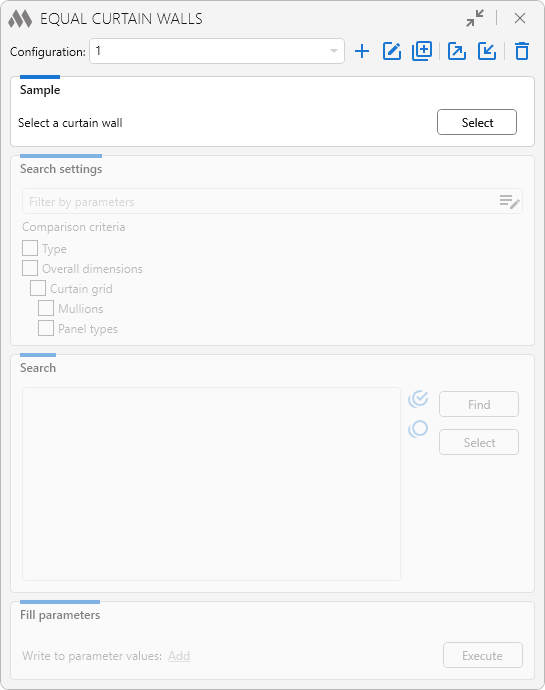

In the Sample section, select the curtain wall that will be used as a reference for comparison with other curtain walls in the current project. After clicking the Select button, specify the sample curtain wall in the model. Once the sample is selected, the remaining plugin sections become available.

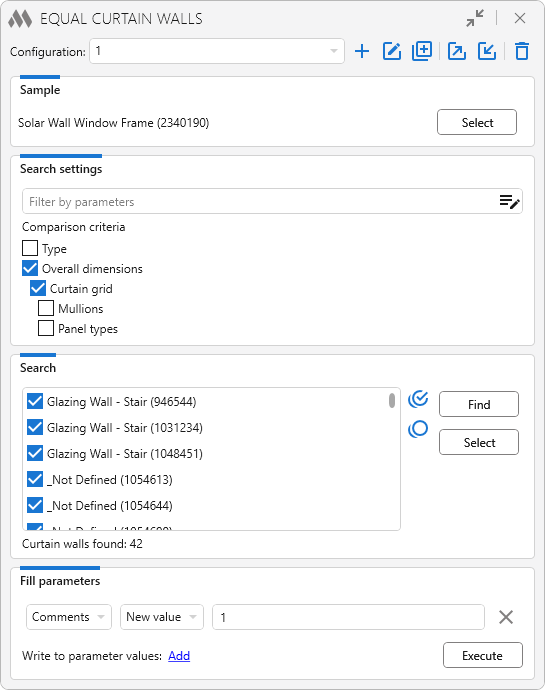

Search settings allow you to filter curtain walls by parameters and define the criteria according to which the found curtain walls will be compared with the sample. If no filter is specified and no criteria are selected, all curtain walls on the view or in the model will be found.

Find – performs a search for curtain walls according to the search settings On active view or In model.

All found curtain walls in the list can be selected or deselected , and the ID of each element can be copied .

Select – selects the curtain walls marked in the list in the model.

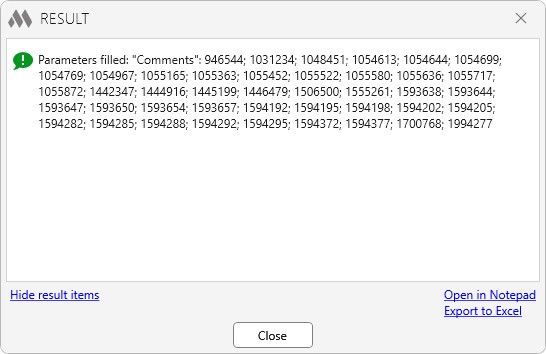

In the Fill parameters section, you can Add additional fields to specify the name of the curtain wall string parameter, the type of value to be written (New value or Value from sample), and the parameter value. After clicking the Run button, parameter values are filled in and the results window appears:
